Industrial Furnace · Peripheral Equipments

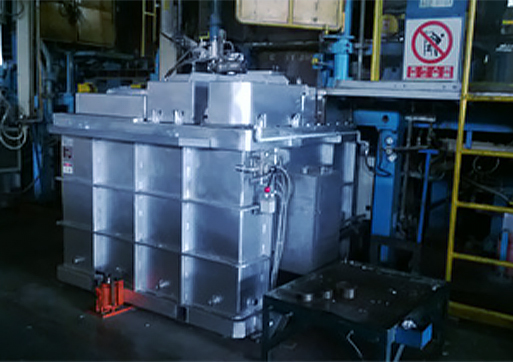

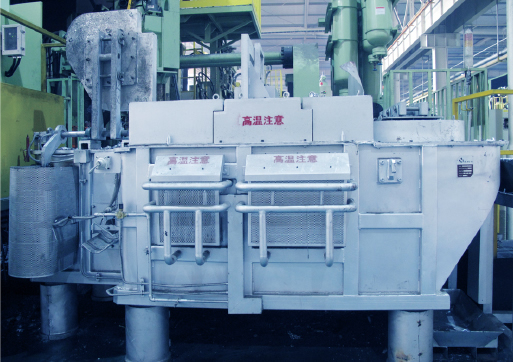

Under Heater AL Holding Furnace

 Under Heater Diecast Holding Furnace

Diecast Machine 350T-500T 650T-800T 800T-1600T 1600T-2000T 2500T-4000T
Holding Cap. 650kg 1000kg 1500kg 2500kg 3000kg
Power Consumption 6.5kwh 8kwh 12kwh 16kwh 20kwh
Heater Quantity 1 2 2 3 4
Heater Material SIC Metal Metal Metal Metal
Heater Cap. 14kw/270v 16kw/80v 16kw/80v 14kw/95v 14kw/95v



 Low Pressure Casting

1 Chamber Type 2 Chamber Type
Holding Cap. 800kg 1000kg 1200kg 1200kg 1500kg 2000kg
Power Consumption 330 kwh/24hr 350 kwh/24hr 390 kwh/24hr 400 kwh/24hr 430 kwh/24hr 465 kwh/24hr
Heater Quantity 2 2 2 2 3 3
Heater Cap. 16kw/80v 16kw/80v



 Gravity Casting

Holding Cap.
500-5000kg
